The Industrial Laser Rangefinder Module from the PTFS series is a high-performance long-range distance measurement solution designed for rifle scopes, hunting binoculars, and outdoor optical systems. This industrial laser rangefinder module delivers stable, high-precision measurement even under strong sunlight and complex environments.
The PTFS Series Industrial Laser Rangefinder Module is a next-generation long-range infrared distance measurement solution designed for rifle scopes, hunting binoculars, and outdoor optical devices.
Built with advanced 905nm laser technology, this compact module delivers high-precision, stable, and anti-interference distance measurement even under strong sunlight and complex outdoor environments.
With a measurement range of up to 800 meters, it is ideal for long-distance targeting, wildlife observation, tactical optics, and industrial applications.
🔹 Key Features of the Industrial Laser Rangefinder Module
✅ Long Range Measurement up to 800m
-
Reliable distance detection up to 800 meters (70% reflectivity target)
-
Suitable for outdoor hunting, shooting scopes, and surveillance systems
✅ High Accuracy & Fast Response
-
الدقة: ±1 meter
-
Measurement time: ~1 second per reading
-
Resolution: 0.1m
✅ Strong Anti-Interference Performance
-
Works effectively under strong sunlight conditions
-
Resistant to environmental noise such as dust and ambient light
✅ Compact & Lightweight Design
-
Size: 43 × 35 × 21 mm
-
الوزن: ~30g
-
Easy integration into optical devices and embedded systems

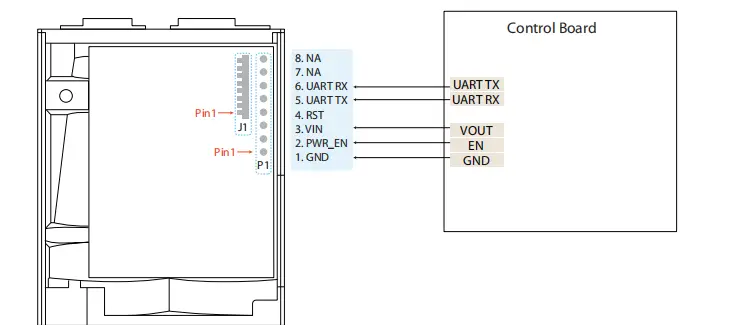

✅ Easy Integration via UART (TTL)
-
UART communication (115200bps default)
-
TTL level output (3.3V compatible with 5V systems)
-
Simple command-based control (start/stop measurement, parameter setting)
✅ Low Power Consumption
-
Operating voltage: 3.3V (2.5V–3.5V range)
-
Typical power: 330mW
-
Ideal for battery-powered devices
🔹 Technical Specifications
| المعلمة | القيمة |
|---|---|
| نطاق القياس | 3m – 800m |
| الدقة | ±1m |
| القرار | 0.1m |
| نوع الليزر | 905nm |
| وقت القياس | ≤1s |
| المنطقة العمياء | 3m |
| الواجهة | UART (TTL 3.3V) |
| معدل الباود | 115200 |
| مزود الطاقة | DC 3.3V |
| تيار التشغيل | ~100mA |
| درجة حرارة التشغيل | 0°C to +50°C |
| الأبعاد | 43 × 35 × 21 mm |
| الوزن | ~30g |
🔹 Applications of Industrial Laser Rangefinder Modules
-
🎯 Rifle scopes & ballistic systems
-
🔭 Hunting binoculars & rangefinding optics
-
🛰️ Outdoor surveillance & security systems
-
🚁 UAV / drone distance measurement
-
🏗️ Industrial distance measurement & automation
-
🌲 Forestry & environmental monitoring
🔹 Communication & Control
The module supports a simple serial communication protocol, enabling:
-
Start / stop measurement
-
Continuous or single measurement mode
-
Real-time distance output
-
Parameter configuration (ID, baud rate, etc.)
Distance data is transmitted in real-time via UART, making it easy to integrate into MCU, الأنظمة المدمجة, or smart optical devices.
🔹 Environmental Adaptability
This laser distance sensor is designed for outdoor use, but performance may vary depending on:
-
Target reflectivity (best on white surfaces ~70%)
-
Weather conditions (fog, rain, dust)
-
Surface material (dark or reflective surfaces may reduce range)
🔹 Safety Notes
-
Do not point the laser directly at eyes or the sun
-
Avoid use in flammable or explosive environments
-
Ensure proper system integration for safe operation
🔹 Why Choose This Module?
✔ Long-distance measurement up to 800m
✔ Industrial-grade stability and accuracy
✔ Compact and lightweight for optical integration
✔ Easy UART interface for fast development
✔ Ideal for hunting, tactical optics, and outdoor systems
Customization & OEM Capabilities
في مسكرنيل, we understand that every project has unique technical and integration requirements. That’s why we offer flexible OEM/ODM customization services to help you build the perfect laser rangefinder solution.
With years of experience in laser measurement technology, we support full customization across hardware, software, and mechanical design to ensure seamless integration into your system.
🔧 What Can Be Customized?
-
Measurement Range & Accuracy
Tailor the sensing distance from short-range to long-range (meters to kilometers) with optimized precision. -
واجهات الاتصال
UART, RS232, RS485, USB, CAN, Bluetooth, and custom protocols for your system compatibility. -
Measurement Frequency & Response Time
Adjustable sampling rates for real-time or low-power applications. -
Laser & Optical Configuration
Wavelength, lens coating, and optical design optimized for different environments. -
Mechanical Structure & Housing
Custom size, shape, mounting design, and rugged housing (IP54–IP68 available). -
Environmental Adaptation
Extended operating temperature, anti-vibration, waterproof, and dustproof designs. -
Firmware & Output Protocol
Custom data formats, command sets, and integration with your MCU or embedded system.
🚀 Engineering Support & Integration
Our engineering team provides full technical support throughout your project:
-
Interface & wiring guidance
-
Communication protocol documentation
-
Firmware customization & debugging
-
Integration support for UAV, optics, robotics, and industrial systems
We ensure your module is not just a component, but a fully optimized solution tailored to your application.
🔹 Why Work With Us?
✔ 20+ years of laser measurement R&D experience
✔ Strong OEM/ODM capability for industrial & outdoor applications
✔ Fast customization response and stable mass production
✔ Proven solutions across UAV, hunting optics, automation, and robotics
💡 Looking for a custom laser rangefinder module for your project?
Contact us today to discuss your requirements — we’ll help you turn your concept into a reliable, production-ready solution.
