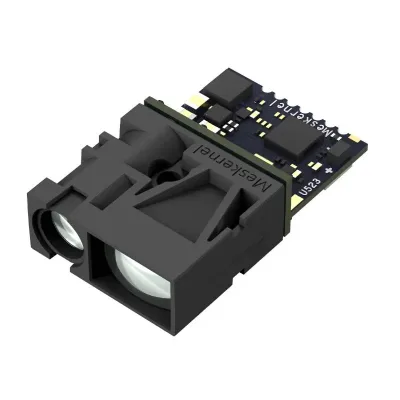

Micro Laser Distance Sensor LDL-T Module – Compact Power, Industrial Precision
Unlock next-level distance measurement with the LDL-T, a cutting-edge high-precision laser distance sensor module from Chengdu Meskernel Integrated Technology Co., Ltd. Designed for integration into size- and weight-sensitive systems, this micro laser distance sensor module delivers exceptional accuracy, fast response, and industrial-grade reliability — all in a package weighing just 2 grams.
Why Choose the Micro Laser Distance Sensor LDL-T?
1. Ultra-Compact & Featherlight
At 27.87 × 16.57 × 7.01 mm and only 2 g, the micro laser distance sensor LDL-T fits effortlessly into UAVs, AGVs, handheld instruments, and other space-constrained devices.
2. High Accuracy, Long Range
Measurement Range: 0.03–80 m
Precision: ±1 mm even in low reflectivity or bright light conditions
Reliable readings for both short-range and long-range tasks.
3. Lightning-Fast Measurement
التردد: Up to 30 Hz for real-time applications.
Perfect for moving targets, automation lines, and robotics navigation.
4. Energy-Efficient Design
Low current consumption, ideal for battery-powered systems.
Compatible with dry cell and lithium cell power inputs.
5. Flexible Connectivity
Multiple interface options: USART, RS232, RS485.
Adjustable baud rates for seamless integration with existing systems.
6. Proven Safety & Compliance
Class II visible red laser, safe for industrial and commercial use.
Certified CE / FCC / RoHS / FDA for worldwide compliance.
7. Customization to Fit Your Needs
Need specific range, accuracy, or communication settings? Meskernel offers full customization to match your exact application requirements.
Typical Applications
Industrial Automation – Positioning, object detection, machine control.
Drones & Robotics – Obstacle avoidance, height control, navigation.
Surveying & Mapping – High-accuracy field measurements.
Smart Logistics – Automated distance control for conveyor belts and storage.
Portable Devices – Integration into handheld or wearable measuring tools.
Technical Highlights
| Feature | Specification |
|---|---|
| Range | 0.03–80 m |
| الدقة | ±1 mm |
| التردد | Up to 30 Hz |
| نوع الليزر | 610–690 nm (Visible Red) |
| Dimensions | 27.87 × 16.57 × 7.01 mm |
| الوزن | 2 g |
| Interfaces | USART, RS232, RS485 |
| Certifications | CE / FCC / RoHS / FDA |
🚀 The micro laser distance sensor LDL-T is the perfect choice for engineers, OEMs, and innovators looking to combine miniature size with maximum measurement performance. Whether you’re building industrial equipment, robotics, or smart devices, this laser distance module delivers speed, precision, and durability you can trust.
