Ultra-Compact Long-Range Laser Range Module for OEM Integration

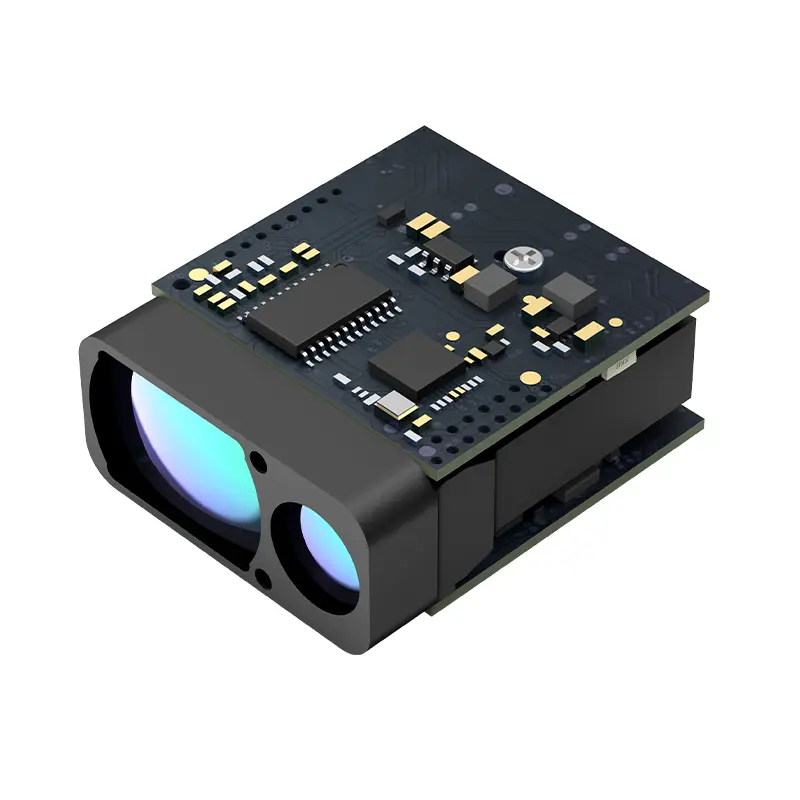

The TS1224-E 3Km / 4Km Mini Micro Laser Range Module is a compact, lightweight laser ranging solution designed for OEM integration in UAVs, robotics, optical systems, and portable measurement equipment.
With long measurement range, stable performance, and flexible communication interfaces, it is ideal for space-constrained applications requiring reliable distance measurement.
Key Features
-
Long Measuring Range
Supports distance measurement up to 3 km or 4 km (depending on version and target reflectivity). -
Ultra-Compact Design
Micro-size module optimized for embedded systems and weight-sensitive platforms such as UAVs and gimbals. -
High Measurement Stability
Designed for consistent performance in outdoor and industrial environments. -
Fast Response Time
Suitable for real-time distance feedback and dynamic measurement tasks. -
Easy OEM Integration
Standard serial communication interface for fast system integration. -
Low Power Consumption
Optimized for battery-powered and mobile applications.
Typical Applications
-
UAV altitude measurement & ranging
-
Optical payloads and gimbal systems
-
Robotics and autonomous systems
-
Portable laser rangefinders
-
Surveying and positioning equipment
-
Industrial distance measurement solutions
Technical Overview
| Parameter | Description |
|---|---|
| Measurement Range | Up to 3 km / 4 km (model dependent) |
| Measurement Principle | Laser time-of-flight |
| Output Interface | Serial communication (UART) |
| Operating Voltage | Designed for embedded power systems |
| Target Types | Natural targets with varying reflectivity |
| Module Type | OEM laser range module |
| Integration | Embedded / system-level integration |
Note: Actual performance may vary depending on target reflectivity, environmental conditions, and system configuration.
Compact Structure for System Integration
The Laser Range Module features a highly integrated optical and electronic design, allowing easy mechanical and electrical integration into customer systems.
Its compact form factor makes it suitable for applications where space and weight are critical constraints.
Communication & Control
-
Supports serial command control
-
Distance data output in real time
-
Easy to interface with:
-
Microcontrollers
-
Single-board computers
-
Flight controllers
-
Industrial control systems
-
Reliability in Real-World Environments
The Laser Range Module is designed for stable operation in:
-
Outdoor environments
-
Variable lighting conditions
-
Industrial application scenarios
This makes it a reliable choice for long-range measurement tasks where consistency and repeatability are required.
Customization & OEM Support
Meskernel provides OEM and customization services, including:
-
Interface customization
-
Mechanical integration support
-
Performance tuning for specific applications
-
Batch production support
If you have specific requirements, our engineering team can help evaluate and optimize the solution for your system.
Why Choose Meskernel?
We develop our own core optoelectronic components and have an experienced R&D team with strong expertise in structural design.
We provide integrated, one-stop measurement module solutions, covering single-point laser measurement products, 2D and 3D LiDAR solutions, as well as professional measurement solutions tailored to specialized application requirements.
Customized and application-specific measurement modules are also available.
-
Specialized in laser distance measurement technologies
-
Strong experience in OEM / module-level solutions
-
Proven products used in robotics, UAVs, and industrial automation
-
Professional pre-sales technical support
Request Datasheet or Sample
Looking for a compact long-range laser ranging module for your project?
👉 Contact us to request the datasheet, pricing, or samples of the TS1224-E 3Km / 4Km Mini Laser Range Module.
