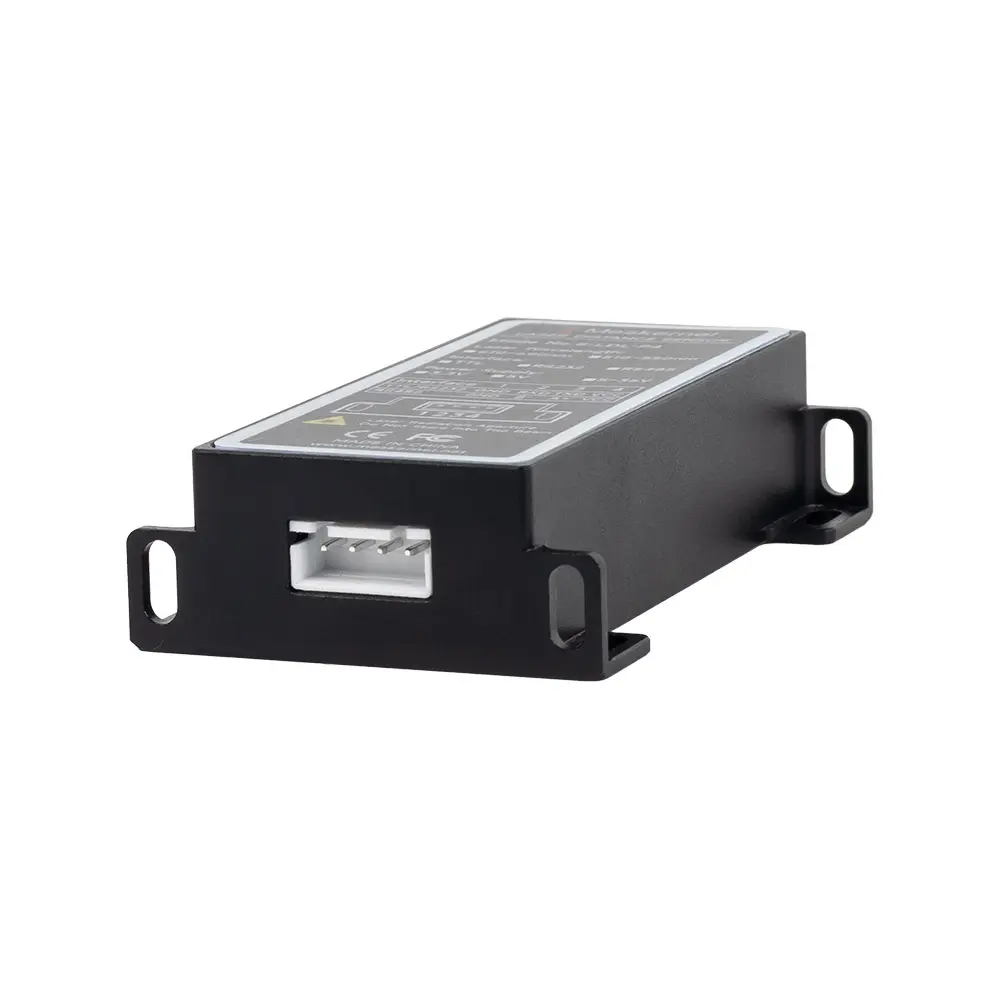

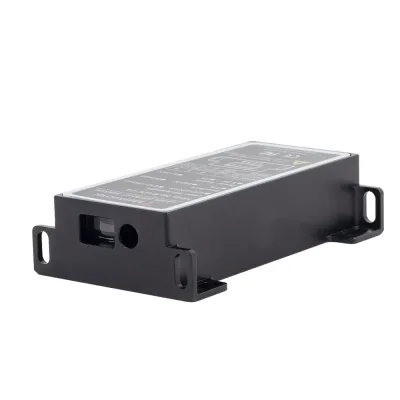

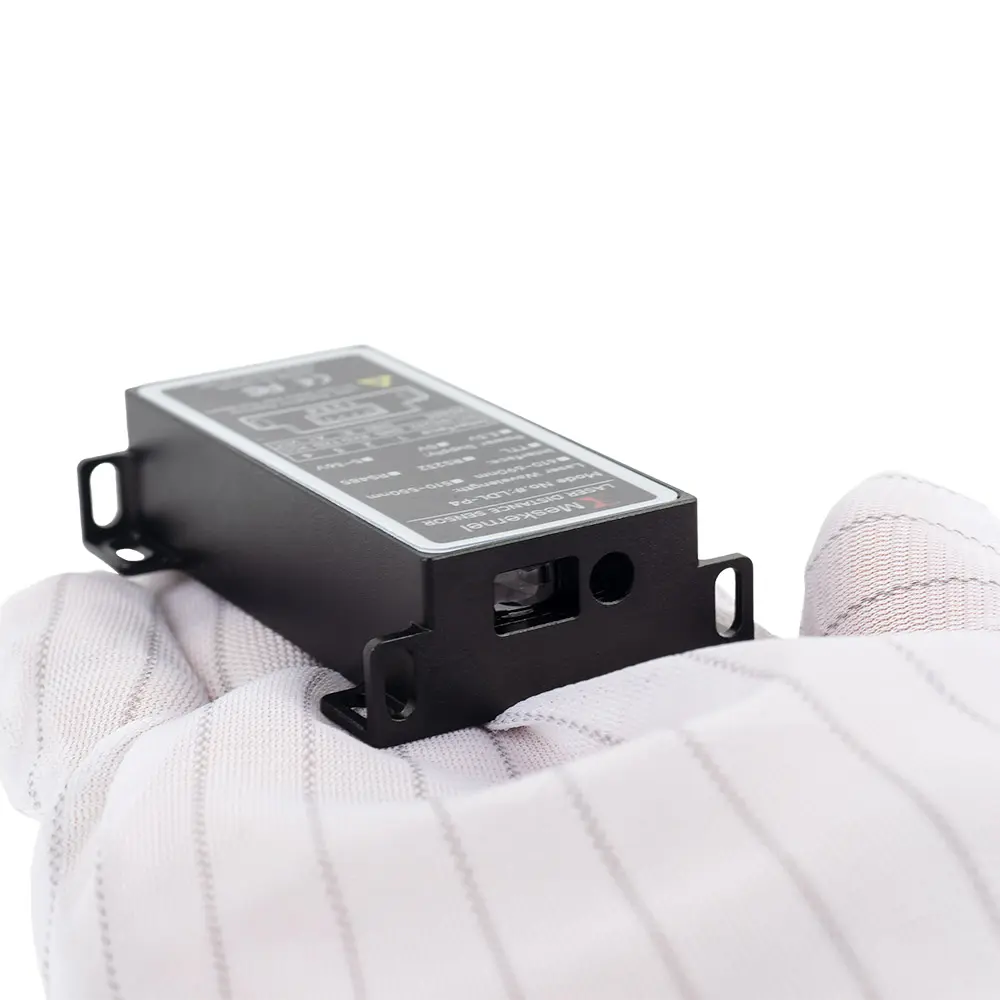

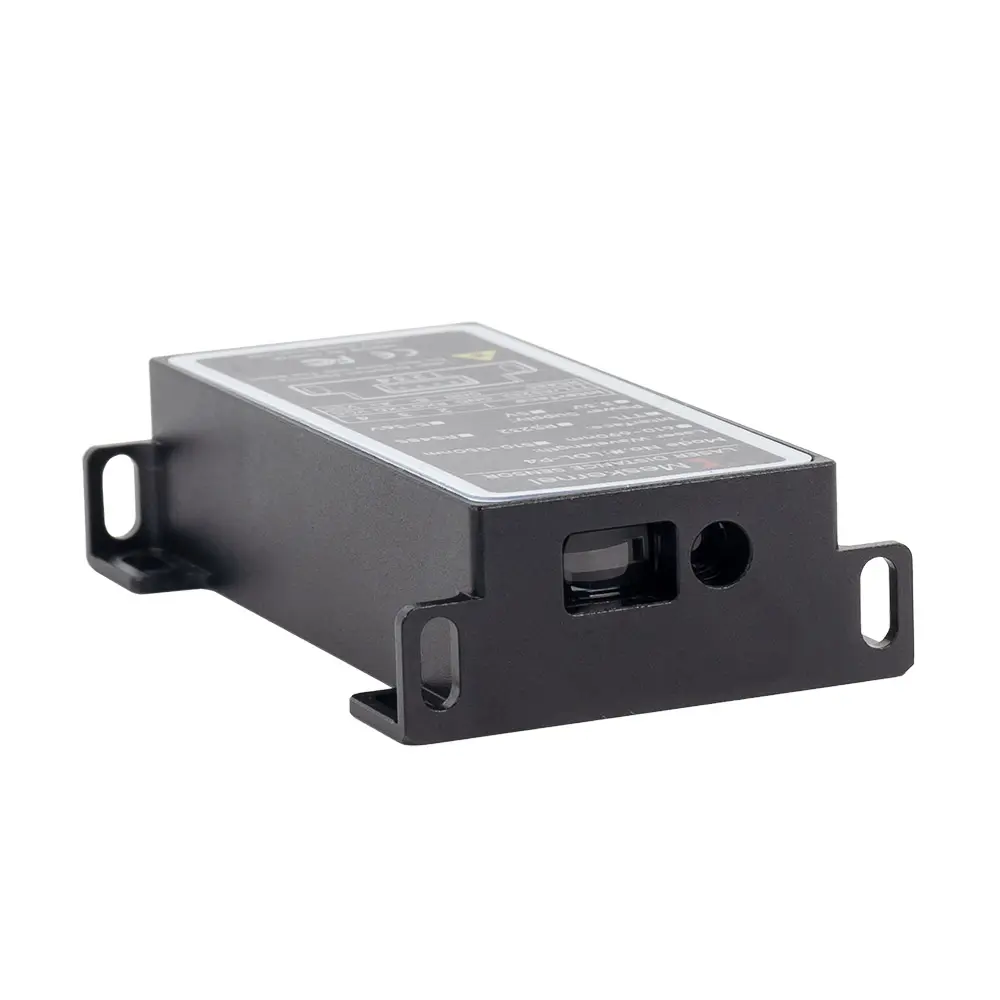

The Meskernel LDLG-P4 is an industrial-grade High Frequency Ranging Sensor engineered for precision distance measurement in demanding environments.
Built on proven iToF (Indirect Time of Flight) technology from the LDL40 series, the LDLG-P4 integrates a green laser beam, a durable IP54-protected aluminum housing, and a 100 Hz high-speed measurement rate.
It delivers fast, stable, and accurate distance readings even under strong ambient light, vibration, or dusty industrial conditions.
To meet different application needs, the High Frequency Ranging Sensor series is available in multiple ranging versions — 40 m, 60 m, and 100 m — all maintaining consistent measurement precision and signal stability.
Características principales
High Frequency Measurement: Up to 100 Hz continuous ranging for real-time and dynamic applications.
Selectable Measuring Range: 40 m / 60 m / 100 m versions available for flexible deployment.
Green Laser Beam (λ = 520 nm): Improved visibility and reflectivity on diverse surfaces and materials.
IP54-Rated Housing: Dust- and splash-resistant for indoor or outdoor industrial use.
Compact Integration: 58.00 × 42.20 × 17.40 mm aluminum body fits easily into OEM systems.
Alta precisión: ±(3 mm + D × 1/10 000) typical precision.
Low Power & Reliable Communication: < 100 mA at 3.3 V with UART/RS485 interface options.
Especificaciones técnicas
| Item | Especificación |
|---|---|
| Principio de medición | iToF (Indirect Time of Flight, phase-based) |
| Measuring Range Options | 0.03 m – 40 m / 60 m / 100 m (selectable models) |
| Precisión | ±(3 mm + D × 1/10 000) |
| Resolución | 1 mm |
| Frecuencia de medición | 100 Hz continuous |
| Tipo láser | Class II Green Laser |
| Longitud de onda del láser | 520 nm |
| Laser Power | < 1 mW |
| Spot Diameter | < 8 mm @ 10 m |
| Operating Voltage | DC 2.5 – 3.6 V (typ. 3.3 V) |
| Operating Current | < 100 mA @ 3.3 V |
| Interfaz | UART (TTL 3.3 V) / RS485 optional |
| Baud Rate | 9600 – 115200 bps (default 115200) |
| Temperatura de funcionamiento | 0 °C – 40 °C (customizable –25 °C – 60 °C) |
| Temperatura de almacenamiento | –25 °C – 60 °C |
| Protection Level | IP54 |
| Housing Material | Aluminum alloy with optical glass window |
| Dimensiones | 58.00 × 42.20 × 17.40 mm |
| Peso | Approx. 50 g |
| Montaje | M3 screw holes / adhesive / custom fixture |
Advantages of High Frequency Ranging Sensor
| Característica | LDL40 | LDLG-P4 |
|---|---|---|
| Laser Color | Red (610–690 nm) | Green (520 nm) |
| Frecuencia | 3–20 Hz | 100 Hz High Frequency |
| Ranging Distance | Up to 40 m | 40 m / 60 m / 100 m models |
| Recinto | Bare PCB module | IP54 aluminum housing |
| Caso práctico | Indoor / lab testing | Industrial / outdoor applications |
| Visibility | Limited under sunlight | Excellent in bright environments |
Aplicaciones típicas
Industrial automation & process control requiring fast response feedback
Robotics and motion control — real-time positioning for arms and gantries
Tank and silo level monitoring in dusty or reflective environments
UAV / AGV navigation, collision detection, and terrain mapping
Construction and surveying applications requiring long-range precision
Why Choose a High Frequency Ranging Sensor
Unlike traditional low-frequency modules, the LDLG-P4 Sensor de alcance de alta frecuencia captures continuous distance data at up to 100 Hz, significantly improving motion tracking accuracy and surface detection in dynamic scenarios.
Its green laser enhances surface response, while the IP54-rated housing ensures consistent operation in industrial and semi-outdoor conditions.
FAQs
Q1: What are the available measuring ranges for high frequency ranging sensor?
A: The LDLG-P4 is available in 40 m, 60 m, and 100 m versions, all offering the same high-frequency (100 Hz) performance and precision.
Q2: What are the advantages of a green laser compared to red?
A: Green lasers (520 nm) have higher visibility and reflectivity, ensuring better accuracy across different materials and lighting conditions.
Q3: Can the LDLG-P4 be used outdoors?
A: Yes. The IP54 enclosure protects against dust and splashes, making it suitable for outdoor or industrial settings.
Q4: What communication interfaces are available?
A: The sensor supports UART (TTL 3.3 V) and optional RS485 for long-distance industrial communication.
Q5: Is it compatible with LDL40 software and protocol?
A: Yes. It uses the same communication protocol, ensuring easy integration or upgrade from the LDL40 series.
