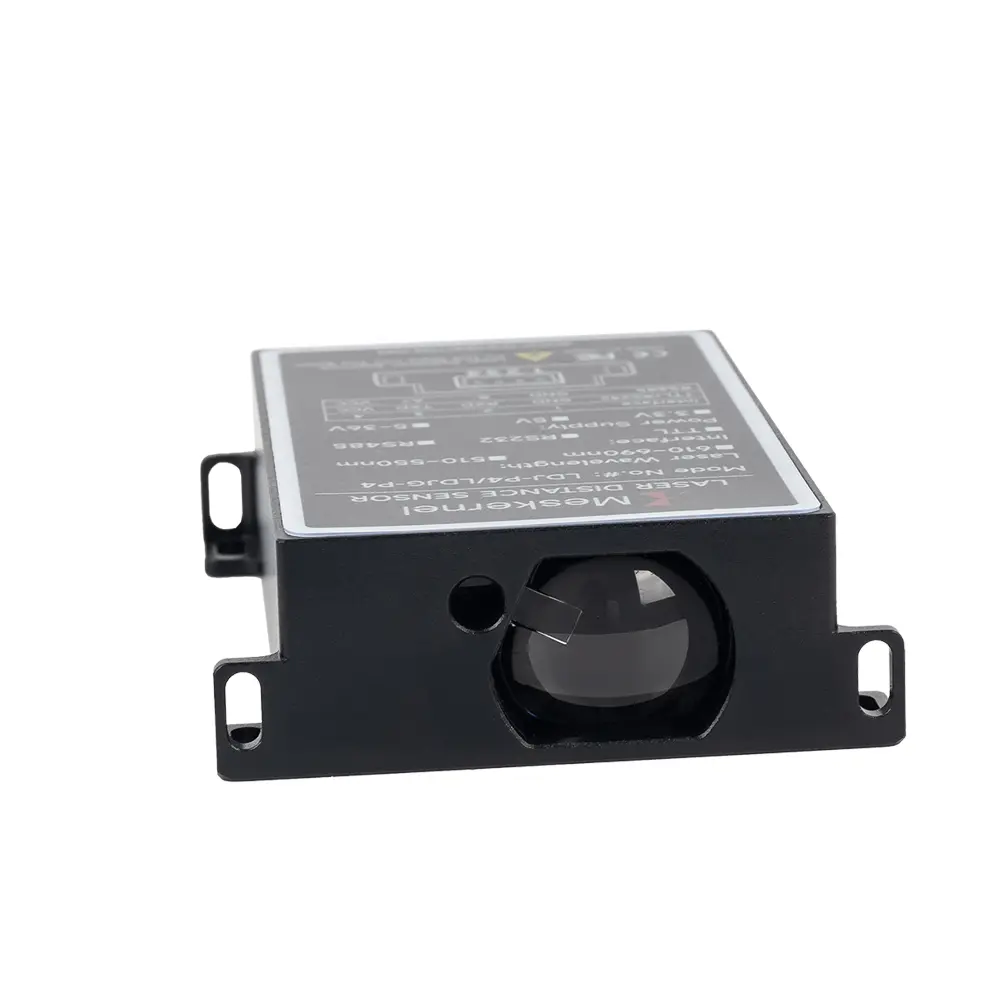

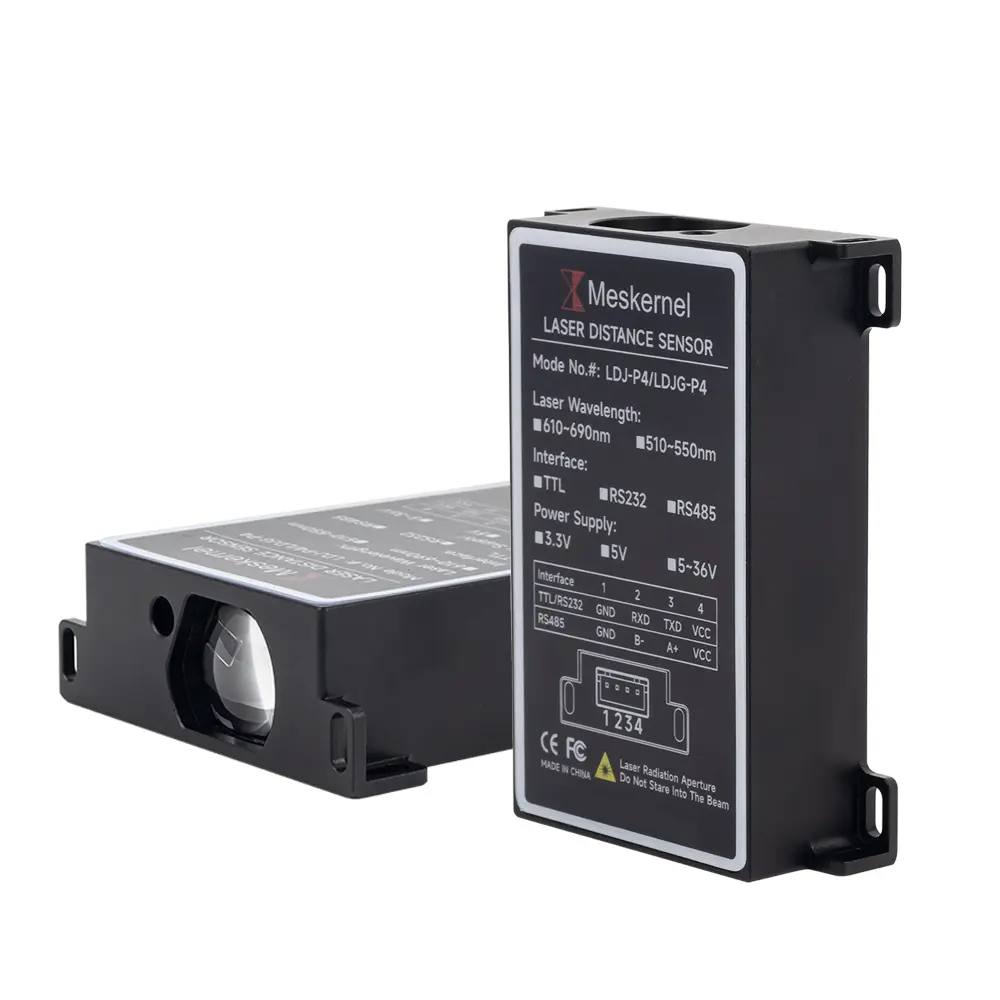

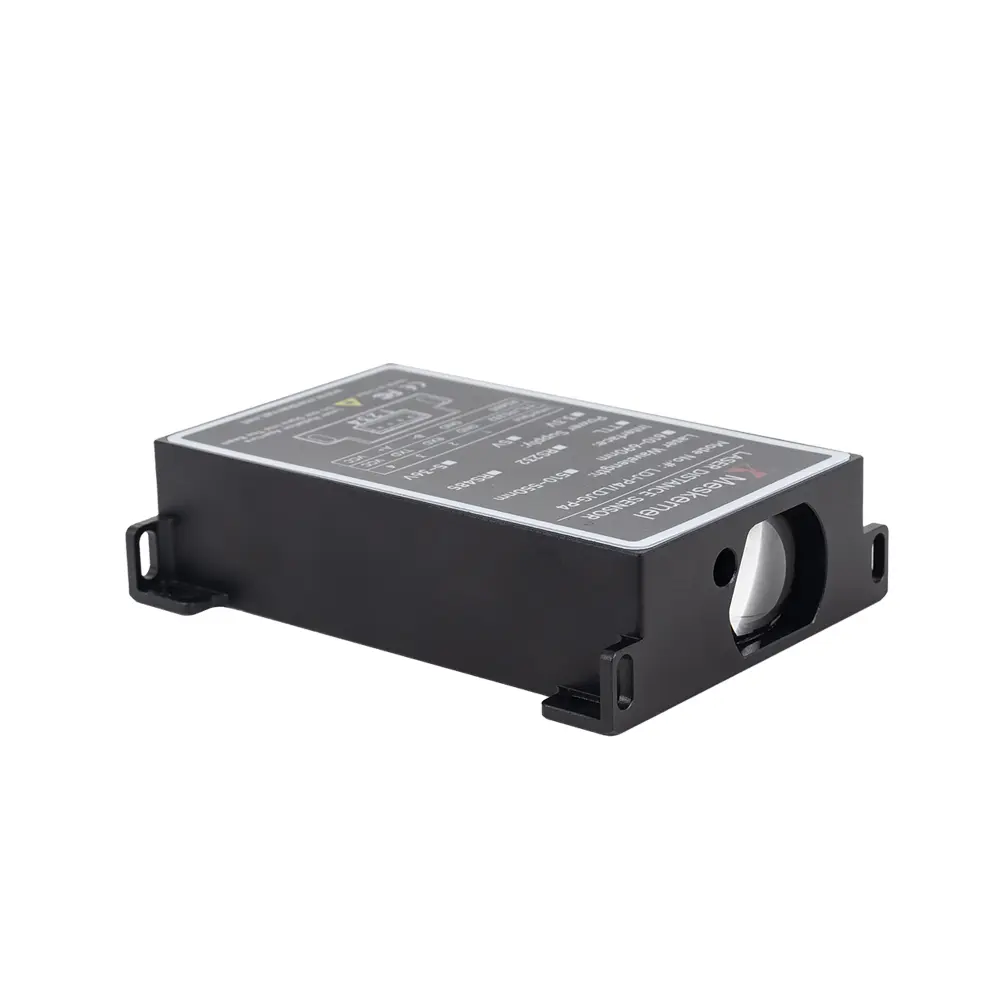

The LDJ-P4 Red Laser Distance Sensor Module, developed by Meskernel, is a compact yet powerful solution (85×62×22mm, 90g) designed for seamless integration into industrial and automation systems. With a measuring range up to 200 meters and an accuracy of ±(3mm + D*1/10000), it ensures reliable and precise distance measurement. Operating at a frequency of 3–20Hz, the module offers both stability and flexibility for various applications. Featuring low power consumption and multiple interface options (TTL/RS485/RS232), it adapts easily to diverse system requirements. With an optional IP67-rated housing, it provides strong protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features of Red Laser Distance Sensor
Large gamme de mesures: 0.03m up to 100m / 150m / 200m (depending on model)
Haute précision: ±(3mm + D*1/10000), ensuring precise measurement even over long distances
Flexible Frequency: Adjustable from 3Hz to 20Hz to meet diverse application needs
Conception compacte: 85×62×22mm, weighing only 90g, easy to integrate into space-limited devices
Interfaces multiples: Supports TTL, RS485, and RS232 for seamless system integration
Red Laser Output: Easy alignment and visible targeting for installation and operation
Customizable Protection: Available in IP54 or IP67, offering dustproof and waterproof performance for demanding environments
Wide Temperature Range: Reliable operation from -25℃ to 60℃
Technical Highlights
Principe de mesure: Phase-shift method, ensuring stable and consistent performance
Faible consommation d'énergie: Optimized for continuous operation without excessive energy demand
Laser Safety: Class II, <1mW, compliant with IEC 60825-1:2014
Certifications: CE, FCC, RoHS, FDA — guaranteeing global compliance and safe deployment
Scénarios d'application
The LDJ-P4 Red Laser Distance Sensor module is widely applicable in:
Automatisation industrielle – real-time distance monitoring, object detection, and equipment control
Logistique et entreposage – inventory measurement, storage height detection, and automated guided vehicles (AGV)
Robotics & UAVs – navigation assistance, obstacle avoidance, and mapping
Infrastructure intelligente – outdoor monitoring, security systems, and traffic management
Levés et cartographie – precision distance acquisition for field measurement tasks
IP67 Protection – Built for Harsh Environments
For users requiring extra durability, the LDJ-P4 Red Laser Distance Sensor can be equipped with an IP67-rated enclosure, offering:
Dustproof Protection – complete resistance against dust intrusion
Waterproof Reliability – protection against temporary water immersion
Extended Usability – perfect for outdoor installations, humid environments, and industrial sites exposed to challenging conditions
Reliability and Support
Backed by 12 months warranty and full technical support, Meskernel provides customization services to meet specific needs such as range adjustment, baud rate, interface compatibility, and environmental adaptations.
The LDJ-P4 Red Laser Distance Sensor Module combines long-range measurement, high accuracy, versatile connectivity, and IP67-grade protection into a compact form factor. Whether applied in industrial automation, robotics, or outdoor monitoring, it delivers reliable performance and durable operation, making it an ideal choice for modern measurement systems.
