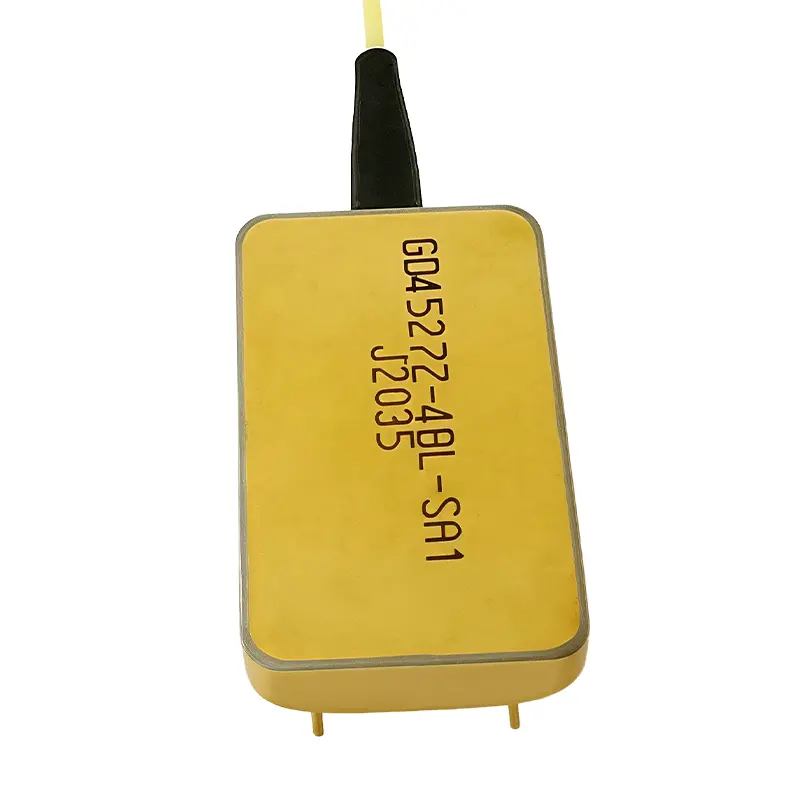

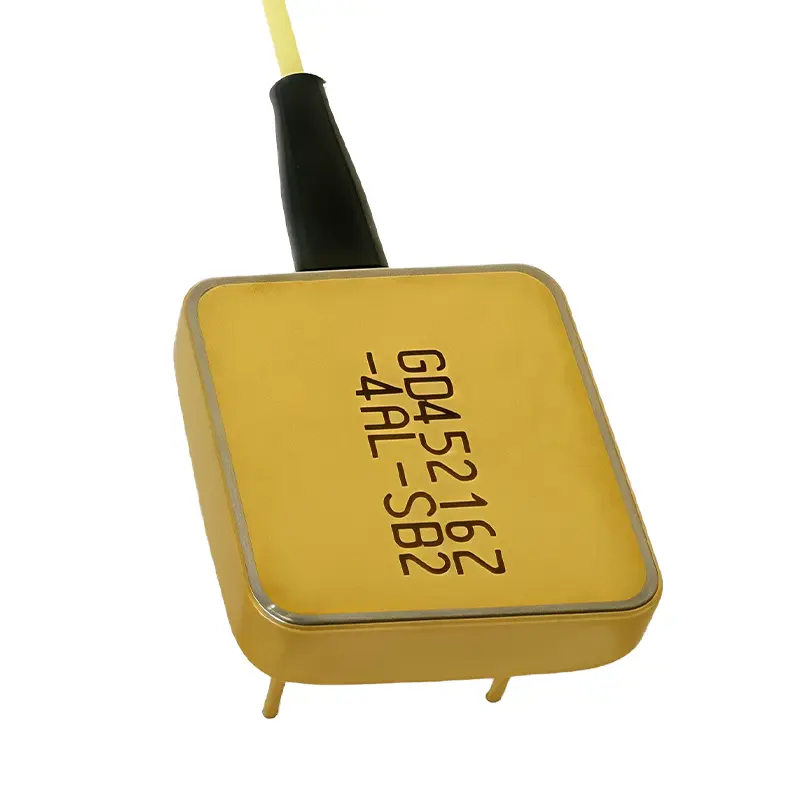

The FO7890 PIN-FET Receiver Module integrates a high-performance PIN photodiode with a low-noise, discrete transimpedance amplifier (TIA), delivering exceptional sensitivity for fiber-optic sensing and communication systems.
This PIN-FET receiver module designed for fiber optic gyroscopes (FOG), precision fiber sensors, and high-speed optical measurement, the FO7890 series provides excellent responsivity, wide bandwidth, and extremely low noise performance.
Incoming light is coupled through single-mode optical fiber for stable, high-reliability operation across wavelengths from 400–1100 nm and 1100–1650 nm, depending on configuration.
This PIN-FET receiver module is ideal for OEM manufacturers building high-precision inertial systems, structural monitoring systems, optical measurement platforms, and industrial fiber-optic communication equipment.
Key Features of PIN-FET Receiver Module
-
High-performance InGaAs PIN / APD / Si APD chip options
PIN-FET receiver module supports multiple spectral ranges and application requirements. -
Low-noise discrete TIA design
Provides high sensitivity and stable output for weak optical signal detection. -
8-pin or 6-pin DIP package
Compact, easy to integrate into fiber-optic modules and electronic systems. -
Wide wavelength coverage
-
400–1100 nm (Si APD/PIN version)
-
1100–1650 nm (InGaAs PIN version)
-
-
High dynamic range and broadband detection
Supports precision fiber-optic sensing and high-speed signal acquisition. -
Industrial-grade reliability
Designed for long-term stability in harsh environmental conditions.
Typical Applications of PIN-FET Receiver Module
-
Fiber Optic Gyroscope (FOG) Systems
High-stability photodetection for inertial navigation. -
Fiber Optic Sensing Systems
Distributed sensing (DAS), pressure, temperature, strain measurement. -
Optical Fiber Communication
High-responsivity PIN receiver module for weak signal detection. -
Precision Optical Measurement Equipment
Laboratory and industrial photodetection instrumentation. -
Low-noise fiber detector modules
For TOF sensing, interferometric systems, and precision metrology.
Model Classification
FO7890 – A B C – E F G
A – Transimpedance Value
Exemple :
-
203 → 20 kΩ
-
404 → 400 kΩ
Available TIA values: 12 kΩ, 20 kΩ, 40 kΩ, 100 kΩ, 200 kΩ, 300 kΩ, 400 kΩ, 600 kΩ, 800 kΩ, 1200 kΩ
C – Operating Wavelength
-
S = 850 nm
-
L = 1310 nm / 1550 nm
E – Fiber Parameters
-
S = 9/125/250 µm
-
X = 6/80/165 µm
F – Zero Voltage
-
A = −1.1 V to −0.5 V
-
B = −2.0 V to −1.2 V
G – Identification Code
1–9 (custom product ID)
Recommended Operating Conditions
-
VCC: +5 V
-
VSS: −5 V
-
Température de fonctionnement: −45°C to +70°C
-
Température de stockage: −55°C to +85°C
Absolute Maximum Ratings
-
VCC: +5.5 V
-
VSS: −5.5 V
-
Température de stockage: −55°C to +85°C
-
Température de fonctionnement: −45°C to +70°C
Electrical Characteristics
(VCC = 5V, VSS = −5V, Tamb = 25°C ± 3°C)
| Modèle | Noise (mV) | Responsivity (kV/W) | Bandwidth (MHz) | Sensitivity (dBm) | Dynamic Range (dB) |
|---|---|---|---|---|---|
| –203BS | ≤0.8 | ≥10 | ≥70 | ≤−33.5 | ≥25 |
| –203BL | ≤0.8 | ≥17 | ≥70 | ≤−36 | ≥25 |
| –403BS | ≤0.8 | ≥20 | ≥50 | ≤−36.5 | ≥25 |
| –403BL | ≤0.8 | ≥34 | ≥50 | ≤−39 | ≥25 |
| –204BS | ≤0.8 | ≥100 | ≥40 | ≤−43.5 | ≥25 |
| –204BL | ≤0.8 | ≥170 | ≥40 | ≤−46 | ≥25 |
| –304BS | ≤0.8 | ≥150 | ≥35 | ≤−45.5 | ≥25 |
| –304BL | ≤0.8 | ≥255 | ≥35 | ≤−48 | ≥25 |
| –404BS | ≤0.8 | ≥200 | ≥25 | ≤−46.5 | ≥25 |
| –404BL | ≤0.8 | ≥340 | ≥25 | ≤−49 | ≥25 |
| –804BS | ≤0.8 | ≥400 | ≥12 | ≤−50.5 | ≥25 |
| –804BL | ≤0.8 | ≥680 | ≥12 | ≤−53 | ≥25 |
| –125BS | ≤0.8 | ≥600 | ≥6 | ≤−52.5 | ≥25 |
| –125BL | ≤0.8 | ≥1000 | ≥6 | ≤−55 | ≥25 |
Performance Highlights:
-
High responsivity options up to 1000 kV/W
-
Low noise level ≤ 0.8 mV
-
Bandwidth up to 70 MHz
-
Excellent sensitivity down to −55 dBm
Pin Definition (6-Pin Version)
| Pin | Fonction | Symbol |
|---|---|---|
| 1 | Negative Power Supply | VSS |
| 2 | Ground / Case | GND / CASE |
| 3 | Positive Power Supply | VCC |
| 4 | Negative Power Supply | VSS |
| 5 | Sortie | Vout |
| 6 | No Connection | NC |

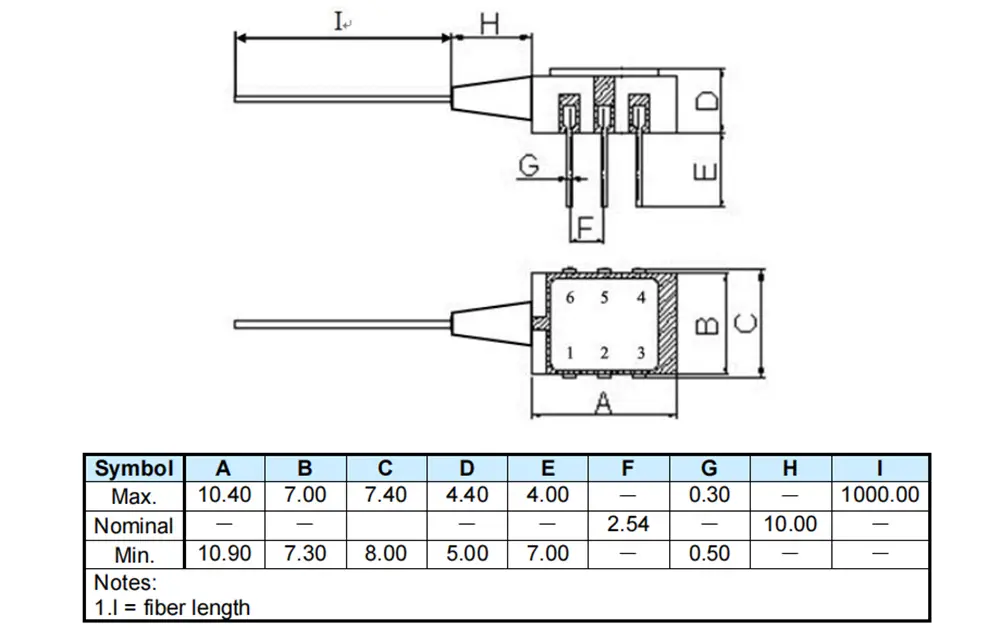

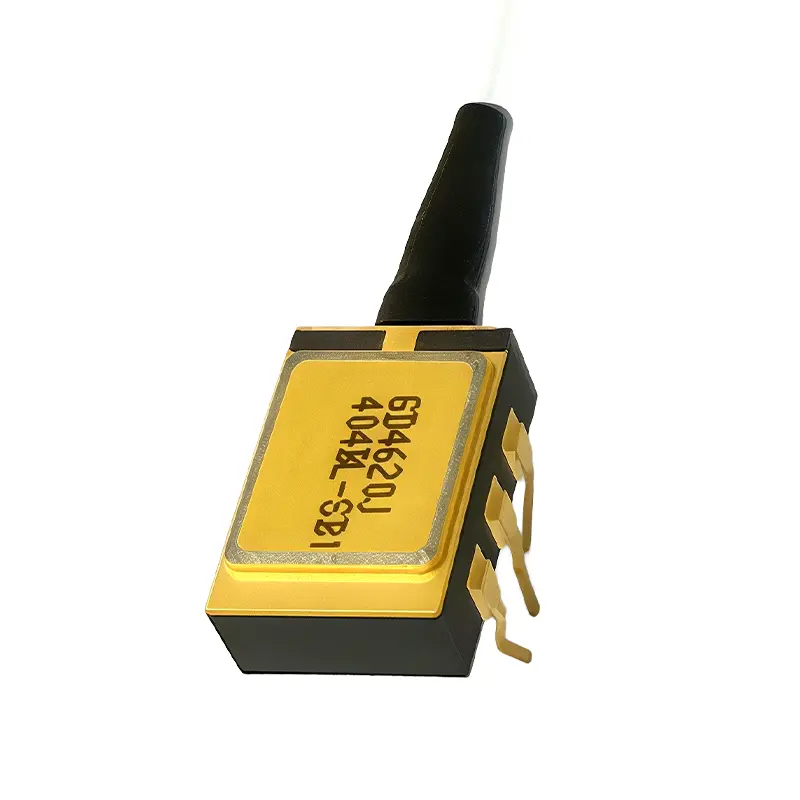

Mechanical Structure
-
Compact DIP package
-
Support fiber lengths up to 1000 mm
-
Compatible with standard single-mode fiber systems
Why Choose the PIN-FET Receiver Module?
-
Optimized for fiber-optic gyroscope (FOG) requirements
-
Extremely low noise for weak-signal detection
-
Customizable TIA gain, wavelength, fiber spec
-
High stability across temperature cycling
-
Ideal for integration into OEM fiber sensing systems
