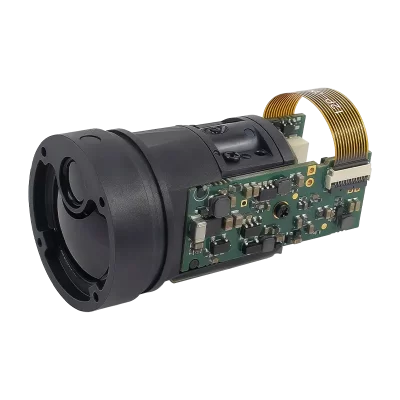

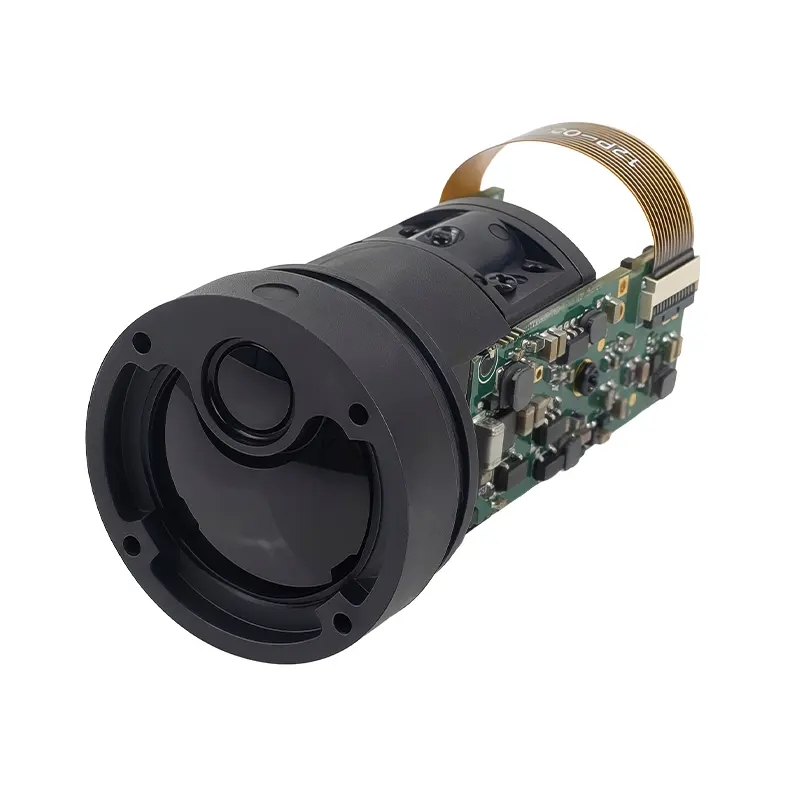

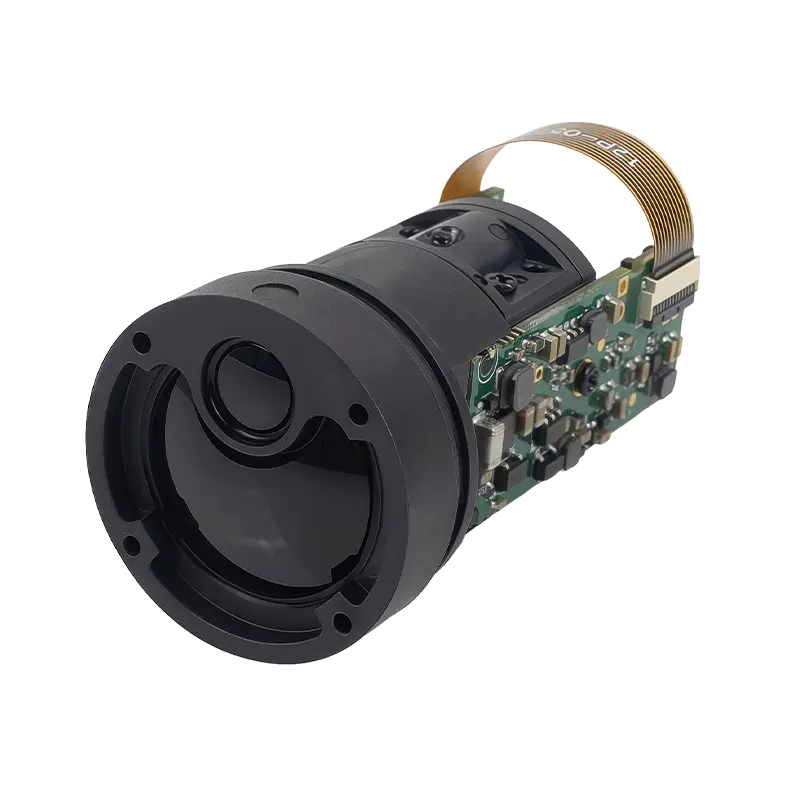

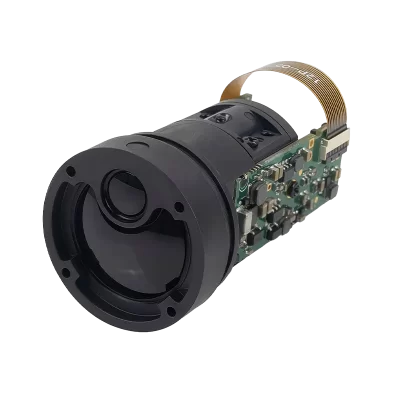

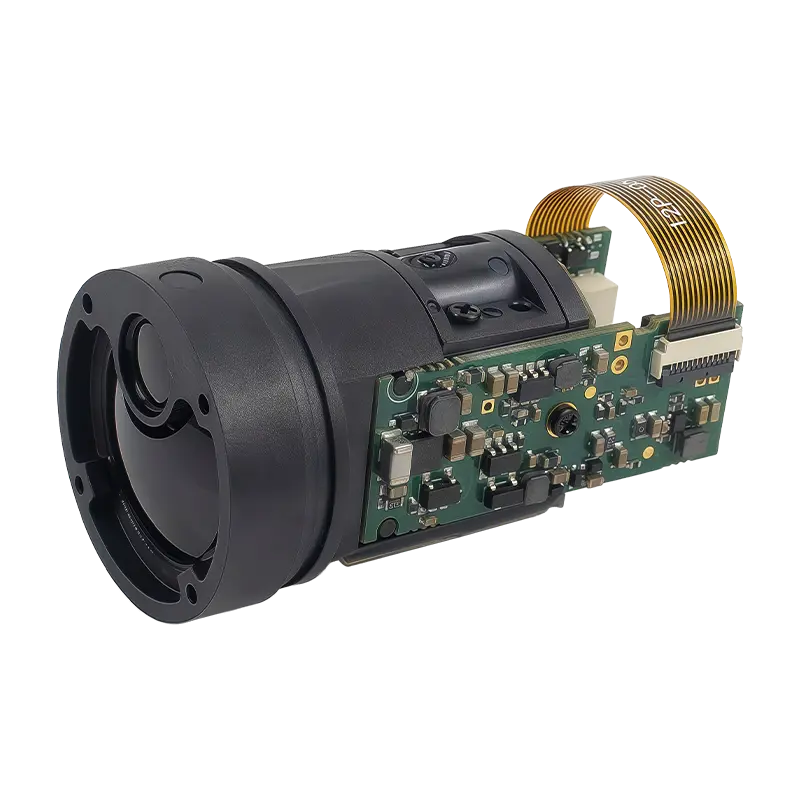

TC25A Laser Distance Sensors – 1500m Long Range Laser Module
The TC25A Laser Distance Sensors is a professional 1500m laser module engineered for demanding surveying, UAV, industrial automation and outdoor distance-measurement applications. This long range laser distance sensor delivers reliable range readings up to 1500 meters with industry-grade stability and an accuracy of ±1.0 m, making it an excellent choice for system integrators and OEMs who need dependable long-range laser rangefinding.
Key Features
Ultra-long Measuring Distance — Effective measuring range 3m – 1500 m, suitable for large-area surveying and perimeter monitoring.
High Measurement Accuracy — ±1.0 m (typical) accuracy for consistent, repeatable results.
Eye-Safe Laser — 905 nm Class 1 infrared laser for safe continuous operation.
Fast Response — Measurement frequency up to 10Hz for near-real-time monitoring.
Multiple Interfaces — UART / RS232 / RS485 options for easy integration with controllers and data loggers.
Compact & OEM-Friendly — Lightweight module design for UAV payloads, vehicle mounts, and embedded instruments.
All-Weather Performance — Designed to work reliably in sunlight, dust, and light rain conditions.
Easy Integration and Maximum Flexibility
Designed for maximum versatility, the TC25A laser distance sensors supports multiple communication interfaces including TTL, RS485, and RS232. This ensures effortless integration into a wide variety of systems, from industrial machinery to robotic platforms and microcontroller-based projects. Whether you’re working on complex industrial setups or small-scale projects, this sensor provides flexible, scalable measurement solutions for all types of applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring Range | 3m – 1500m |
| 정확성 | ±1m |
| 레이저 유형 | 905nm, Class 1 eye-safe |
| Output Interface | UART / RS232 / RS485 (optional) |
| Measurement Frequency | Up to 10Hz |
| Operating Voltage | DC 5V – 12V |
| 작동 온도 | -20°C ~ +60°C |
| Dimensions | Compact module for easy integration |
Typical Applications
UAV / Drone payloads — Terrain following, obstacle avoidance, aerial surveying.
Topographic Surveying & GIS — Long-distance measurements for mapping projects.
산업 자동화 — Positioning, level control, and safety distance monitoring.
Security & Perimeter Monitoring — Long-range intrusion detection and border surveillance.
Forestry & Agriculture — Tree height measurement and large-field mapping.
Marine & Port Operations — Docking assistance and range monitoring.
Why Choose TC25A Laser Distance Sensors?
The TC25A Laser distance sensors balances long-range capability with industrial robustness and straightforward integration. With ±1.0 m accuracy, multiple communication interfaces, and a compact form factor, it’s tailored for engineers and procurement teams who require a reliable long range laser rangefinder for real-world outdoor and industrial environments.
Meskernel Brand & Manufacturing Advantages
With years of experience in OEM/ODM production, Meskernel operates a modern factory equipped with advanced SMT production lines, precision calibration equipment, and strict quality control systems to ensure every module meets international standards.
We offer:
Full OEM & ODM Support — Custom range, accuracy, interface protocol, or housing design to fit your application.
Flexible Output Options — UART, RS232, RS485, CAN, or Ethernet available on request.
Branding & Packaging Customization — Laser module casing color, private labeling, and packaging design.
Fast Lead Times — In-stock standard models and rapid production for customized orders.
Global Shipping & Technical Support — Dedicated engineering team for pre-sales consultation and after-sales service.
With 메커널, you don’t just get a laser sensor — you get a complete, reliable, and tailor-made solution designed for your business success.
