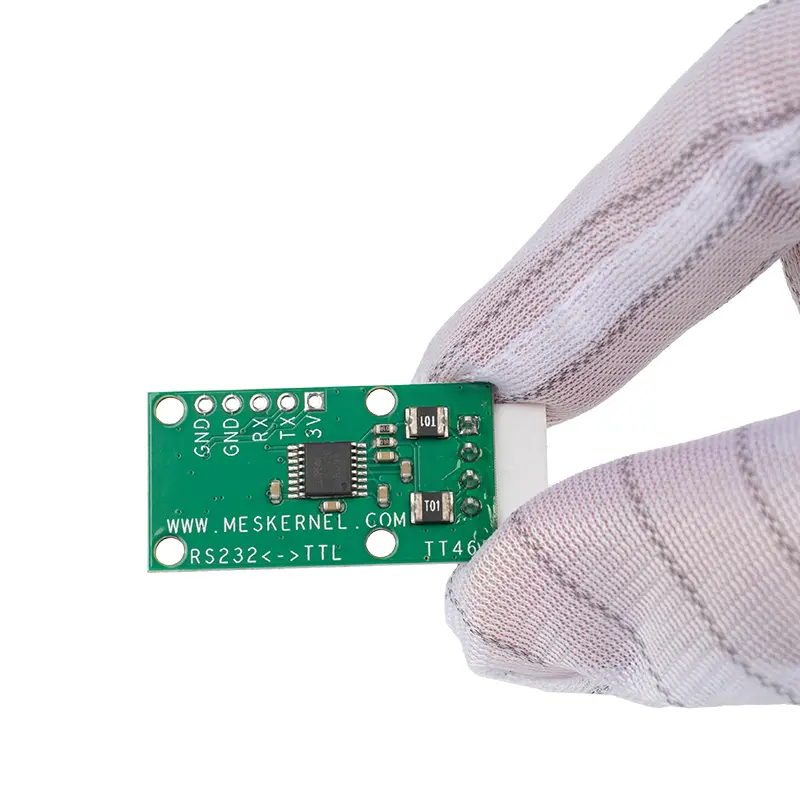

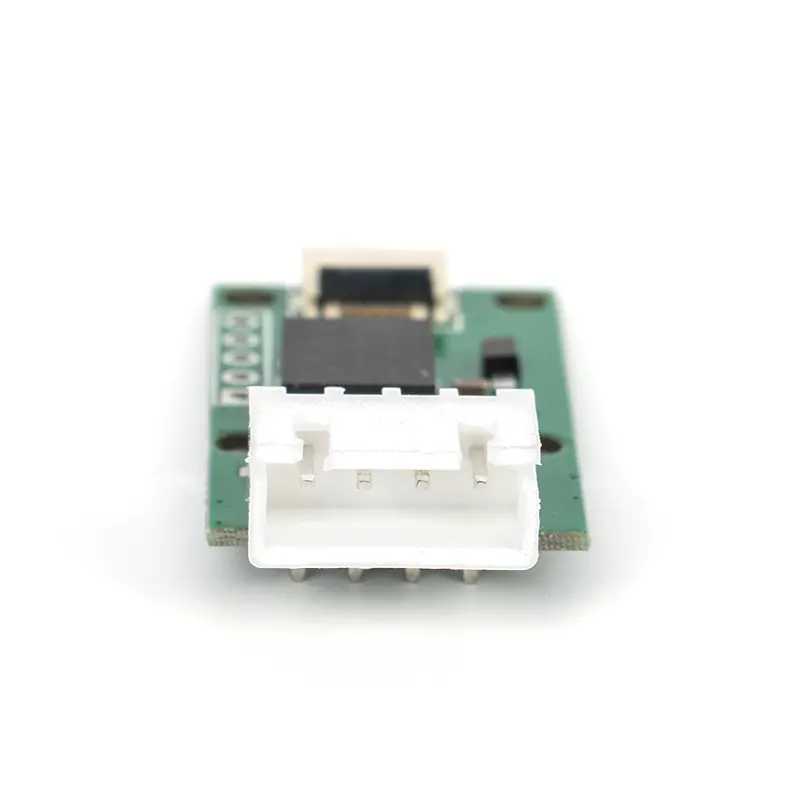

RS232 Serial Port Module — Industrial-Grade Communication Interface for Laser Distance Sensors
The Meskernel RS232 Serial Port Module is designed for seamless integration between laser distance measurement sensors and industrial control systems. Featuring robust anti-interference capabilities and high compatibility, this module ensures stable, long-distance communication in demanding environments.
Engineered for automation, robotics, UAVs, and precision measurement systems, it delivers reliable data transmission with minimal setup.
Kluczowe cechy
✓ Strong Anti-Interference Ability
-
Built with industrial-grade filtering and shielding design
-
Ensures stable data transmission even in noisy environments
-
Suitable for factory automation, outdoor measurement, and high-EMI equipment
✓ Excellent Compatibility
-
Supports standard RS232 communication protocol
-
Compatible with PLCs, IPCs, industrial controllers, and embedded systems
✓ Industrial-Grade Design
-
High-reliability electronic components
-
Wide operating temperature range
-
Durable PCB layout suitable for long-term operation
✓ Easy to Operate & Integrate
-
Plug-and-play interface
-
Clear pin definitions for rapid wiring
-
No complex configuration—ideal for quick project deployment
Specyfikacja techniczna
| Parametr | Wartość |
|---|---|
| Interface Type | RS232 Serial Port |
| Baud Rate | 9600–115200 bps |
| Zasilanie | 5V (typical) |
| Temperatura pracy | −20°C to 60°C (expandable depending on sensor) |
| Wymiary | Compact PCB design for embedded integration |
| Compatible Sensors | Meskernel LD/LDX series, OEM ToF modules, custom integration |
Typowe zastosowania
-
Automatyka przemysłowa (PLC distance feedback, machine positioning)
-
UAV & Robotics (altitude measurement, collision avoidance)
-
Logistyka i magazynowanie (object detection, conveyor control)
-
Inteligentna infrastruktura (level monitoring, displacement sensing)
-
OEM System Development

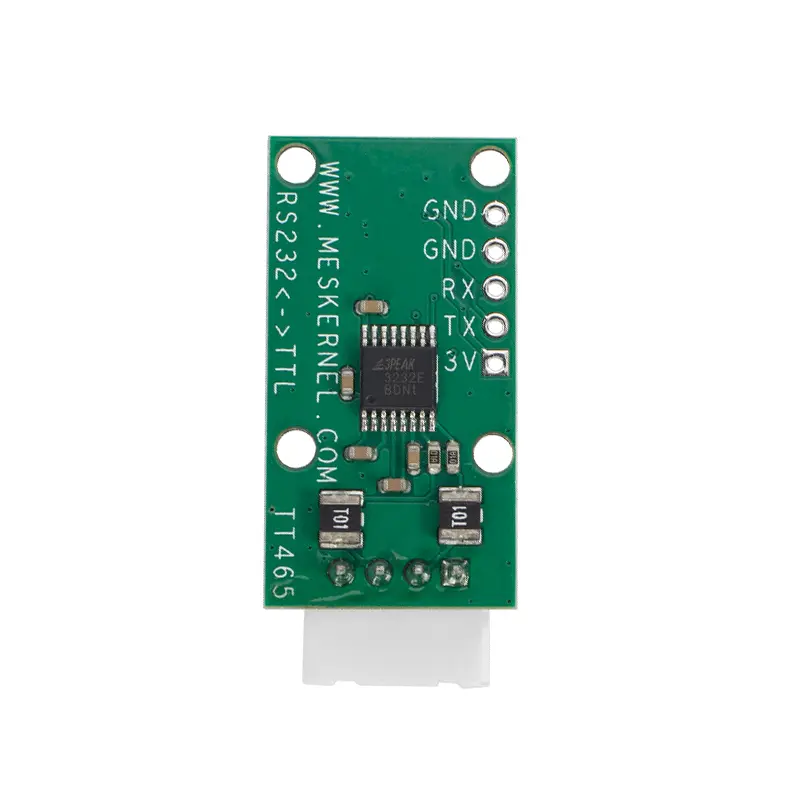

Pin Definition
(Example — adjust according to your actual module)
| Pin | Function |
|---|---|
| VCC | Power Input 5V |
| GND | Ground |
| TXD | Wyjście danych |
| RXD | Data Input |
| EN | Enable Signal |
Advantages Compared to USB/TTL Interfaces
-
More stable long-distance transmission (up to 15 m or more)
-
Better EMI resistance, suitable for industrial sites
-
Widely supported in PLC and industrial computers

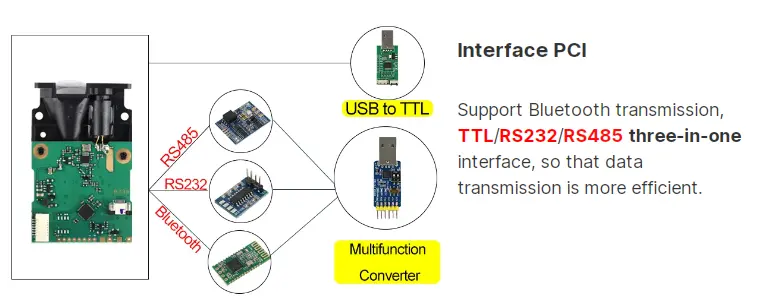

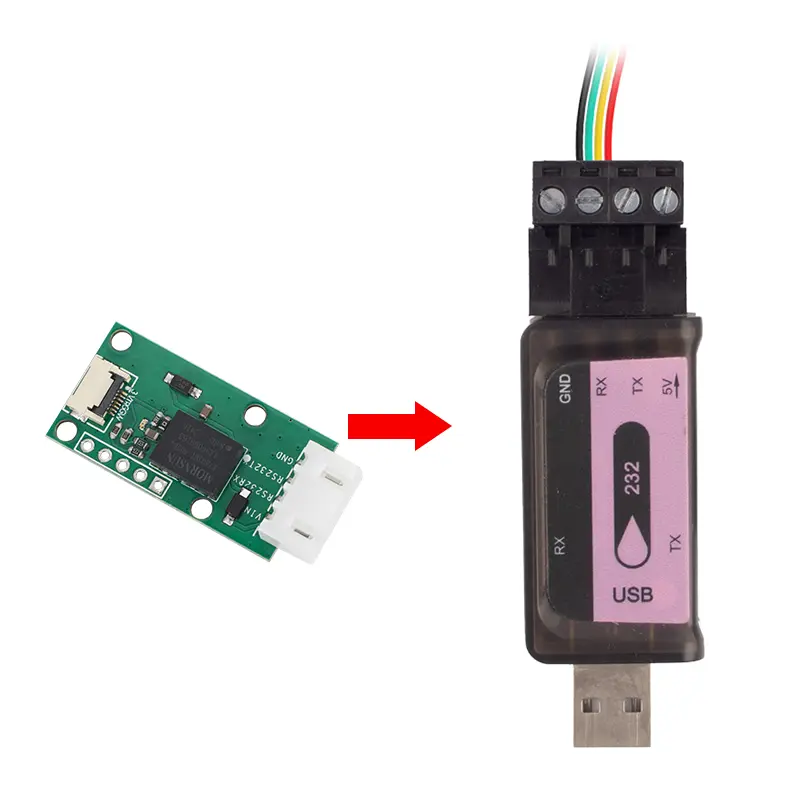

How to Integrate with Meskernel Laser Distance Sensors
-
Connect the RS232 module to the sensor’s communication port
-
Supply power from the main control board
-
Set the corresponding baud rate
-
Start reading distance data via your PLC/embedded system
Quick and reliable—ideal for fast project deployment.
Why Choose Meskernel RS232 Solutions?
Meskernel specializes in laser distance sensing technology and supporting modules. Our communication modules are optimized for precision measurement environments, ensuring stable long-term performance for your industrial applications.
