The LDL-T Laser Rangefinder Sensor Module is a compact, high-accuracy laser distance measurement module designed for industrial automation, robotics, smart devices, and precision measurement systems.
Built on advanced phase-shift iToF (indirect Time of Flight) technology, LDL-T delivers millimeter-level accuracy, stable performance, and flexible system integration in a lightweight form factor.
High-Accuracy Laser Rangefinder Sensor Based on iToF Technology
Unlike traditional ultrasonic or low-resolution optical sensors, the LDL-T Laser Rangefinder Sensor Module uses phase-based iToF laser ranging. By analyzing the phase difference between emitted and reflected modulated laser signals, the sensor calculates distance with exceptional precision.
Key benefits of iToF laser ranging:
-
Millimeter-level measurement resolution
-
Strong resistance to ambient light interference
-
Excellent repeatability and signal stability
-
Ideal for short-to-medium range precision measurement
This makes the LDL-T Laser Rangefinder Sensor Module especially suitable for applications requiring high accuracy and compact integration.
Measurement Performance
| Parametre | Şartname |
|---|---|
| Ölçüm Aralığı | 0.03 m – 60 m (depending on target reflectivity & ambient light) |
| Doğruluk | ±(1 mm + D × 1/10000) |
| Çözünürlük | 1 mm |
| Measurement Time | 0.3 – 4 s |
| Continuous Measurement Frequency | 5 Hz / 30 Hz (short range) |
| Reflectivity Range | 2% – 100% |
| Lazer Sınıfı | Class II (IEC 60825-1) |
| Lazer Dalga Boyu | 610 – 690 nm |
| Laser Power | < 1 mW |
Even under complex conditions such as low reflectivity or moderate ambient light, the LDL-T laser rangefinder sensor maintains stable and repeatable results.
Compact Design for Easy Integration
Designed for embedded and OEM projects, the LDL-T Laser Rangefinder Sensor Module features a small footprint and lightweight structure, enabling seamless integration into space-constrained systems.
-
Dimensions: 27.87 × 17.03 × 7.01 mm
-
Weight: approx. 3 g
-
Castellated holes for direct soldering
-
Optional FPC connector for flexible installation
The compact design makes it ideal for drones, robots, handheld devices, and embedded industrial systems.

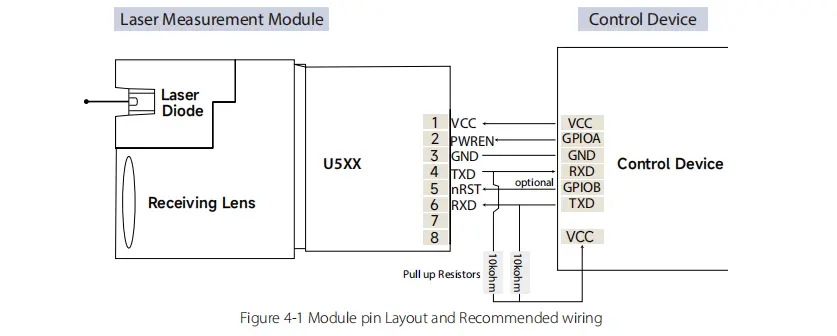

Flexible Communication Interfaces
The LDL-T Laser Rangefinder Sensor Module supports multiple communication methods, ensuring compatibility with a wide range of controllers and industrial systems.
-
TTL (3.3 V)
-
USART
-
RS232 / RS485 (via external level conversion)
-
Default baud rate: 115200 bps
-
Optional automatic or fixed baud rate configuration
This flexibility allows easy integration with MCUs, PLCs, industrial PCs, and embedded Linux systems.
Intelligent Measurement Modes
To adapt to different application requirements, the LDL-T Laser Rangefinder Sensor Module offers multiple working and measurement modes:
-
Single automatic measurement
-
Continuous automatic measurement
-
Automatic speed adjustment based on signal quality
-
Remote laser on/off control via command register

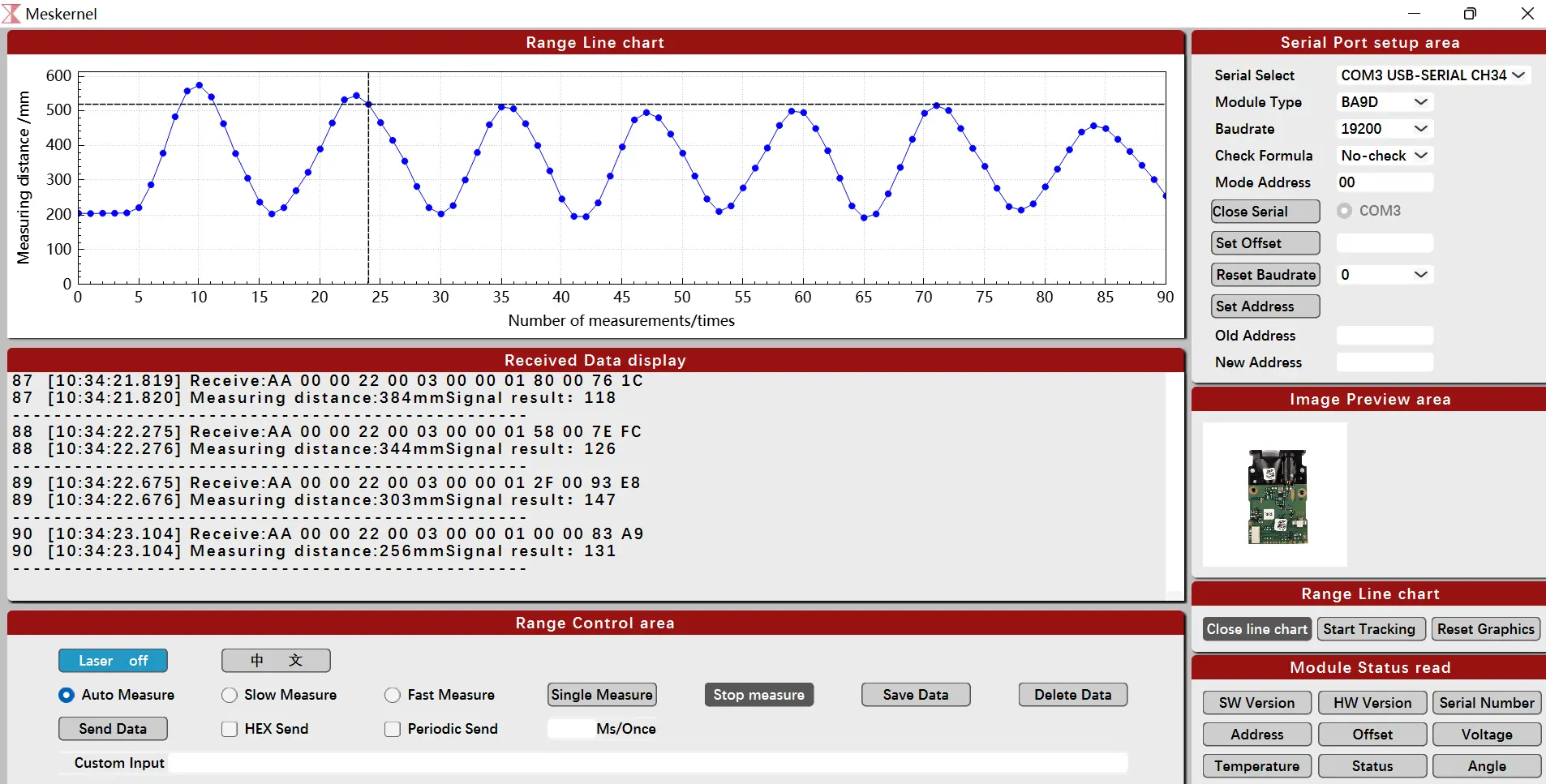

Measurement results include both distance data and signal quality, allowing system-level reliability checks.
Low Power Consumption Options
The LDL-T Laser Rangefinder Sensor Module is available in dry battery and lithium battery versions, supporting energy-sensitive designs:
-
Standby current: < 10 μA
-
Continuous measurement current: < 80–100 mA (depending on version)
-
Supply voltage:
-

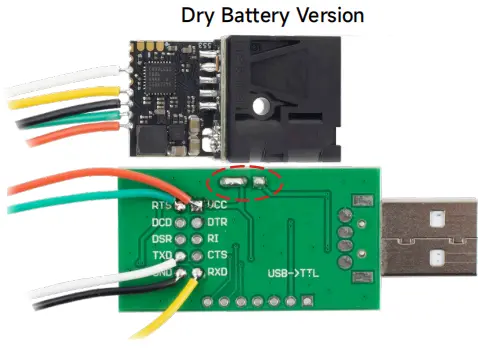

3.3 V (dry battery version)
-

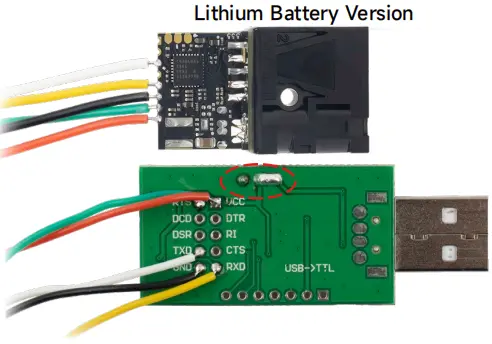

4.0 V (lithium battery version)
-
This makes the module suitable for portable, battery-powered, and always-on systems.
Typical Applications of Laser Rangefinder Sensor
The LDL-T Laser Rangefinder Sensor Module is widely used in:
-
Industrial distance and position measurement
-
Robotics and AGV navigation
-
UAV altitude and obstacle detection
-
Smart devices and automation equipment
-
Surveying and alignment systems
-
Embedded OEM laser measurement solutions
Its balance of accuracy, size, and stability makes it a reliable laser rangefinder sensor for both R&D and mass-production projects.
Why Choose the Meskernel Laser Rangefinder Sensor?
-
✔ Millimeter-level precision with iToF technology
-
✔ Compact, lightweight OEM-ready design
-
✔ Flexible communication interfaces
-
✔ Stable performance under varying reflectivity
-
✔ Industrial-grade reliability
If you are looking for a high-precision Laser Rangefinder Sensor Module that combines performance, integration flexibility, and long-term stability, the Meskernel sensor is an ideal choice.
