UART ToF Laser Sensor Raspberry Pi Integration
Setup, Communication Protocols, and Troubleshooting Guide

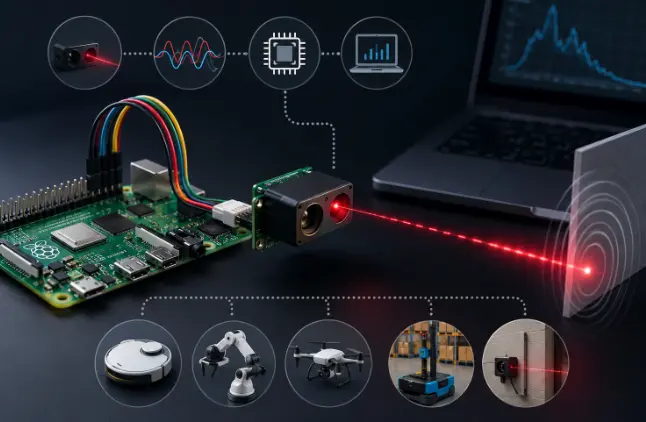

Integrating a ToF (Time of Flight) laser датчик расстояния with a Raspberry Pi via UART is a common requirement in robotics, industrial automation, and embedded systems. However, many developers encounter a frustrating issue:
“Can’t communicate with the расстояние до лазера sensor via UART.”
This article provides a complete, engineer-level guide covering:
- How ToF лазерные датчики work
- Why UART is widely used for лазерное сканирование
- Step-by-step Raspberry Pi integration
- Common UART communication failures and how to fix them
- Practical data parsing examples
Whether you are working with a mini ToF laser range sensor or debugging an existing setup, this guide is designed to get you up and running quickly.

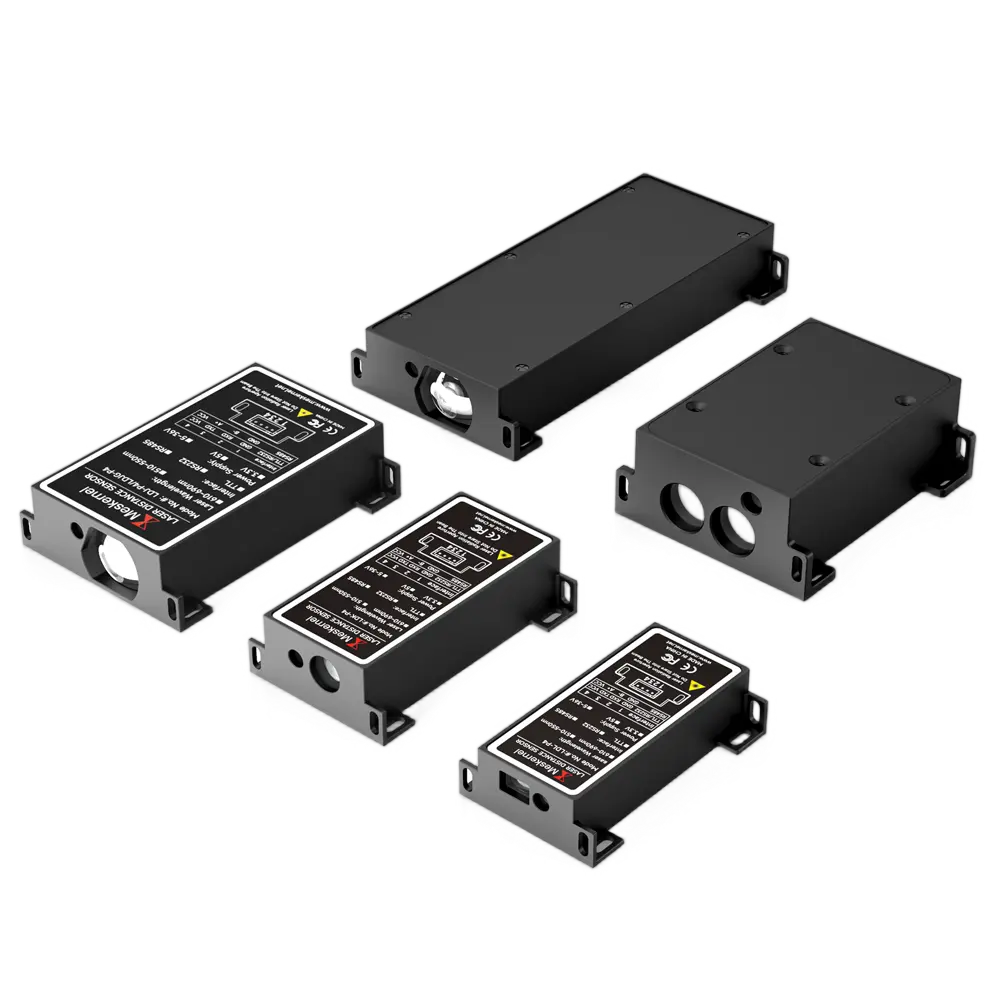

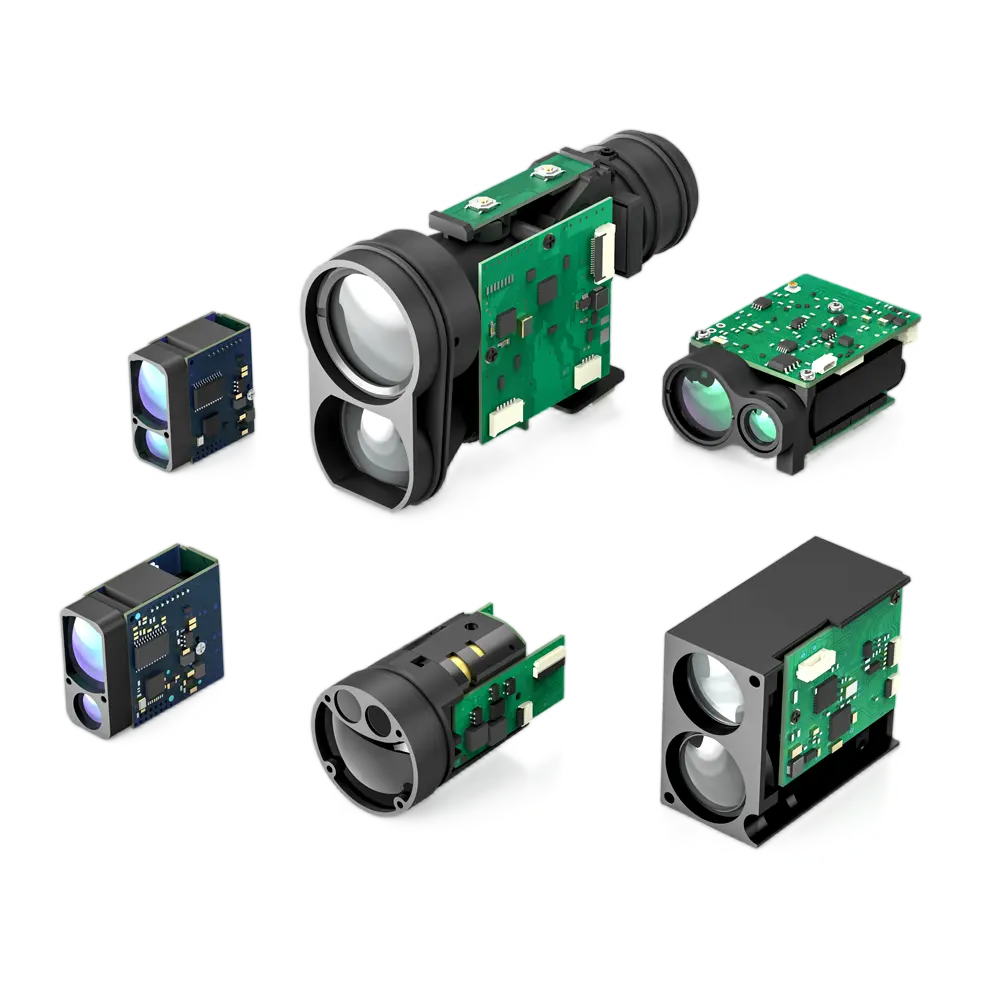

What Is a ToF Laser Distance Sensor?
A ToF laser sensor measures distance by emitting a laser pulse and calculating how long it takes for the reflected light to return to the receiver. Because the speed of light is constant, the sensor can compute distance with high accuracy.
Key advantages of Лазерные датчики точечной ориентации:
- Точность на уровне миллиметра
- Fast response times (hundreds to thousands of Hz)
- Strong resistance to ambient light
- Suitable for both short- and long-range measurement
These features make Точечные датчики ideal for robot navigation, obstacle avoidance, industrial positioning, and smart devices.
Why Many ToF Laser Sensors Use UART
ToF laser modules commonly support UART (Universal Asynchronous Receiver/Transmitter) instead of I²C or SPI. The reason is reliability and simplicity.
UART vs Other Protocols (Quick Comparison)
| Протокол | Плюсы | Cons |
|---|
| UART | Long distance, stable, simple wiring | Point-to-point only |
| I²C | Multi-device bus, fewer wires | Short distance, noise-sensitive |
| SPI | Очень быстро | More wires, short range |
Why UART is preferred for лазерные датчики расстояния:
- Stable communication over longer cables
- Handles high-frequency data streams better
- Simple framing for binary measurement data
For mini ToF laser range sensors, UART offers the best balance of speed, stability, and ease of use.
How Hardware Communication Protocols Power Laser Sensors
UART communication relies on:
- TX (передача)
- RX (прием)
- GND (Ground)
Unlike clock-based protocols, UART depends on precise timing, defined by parameters such as:
- Baud rate (e.g. 9600, 115200)
- Data bits
- Stop bits
- Parity
Most ToF laser sensors transmit binary data frames, not ASCII text. Misunderstanding this detail is a common cause of communication failure.
UART Laser Sensor Raspberry Pi Integration (Step by Step)
This section focuses on integration with Raspberry Pi Foundation platforms running Raspberry Pi OS.
1. Hardware Wiring (Critical Step)
Typical UART wiring:
| Лазерный датчик | Raspberry Pi |
|---|
| TX | RX (GPIO15) |
| RX | TX (GPIO14) |
| GND | GND |
⚠️ Important Notes
- Raspberry Pi UART uses 3.3V logic
- Many laser sensors output 5V UART
- Use a level shifter if the sensor is not 3.3V compatible
Incorrect voltage levels can permanently damage GPIO pins.
2. Enable UART on Raspberry Pi
Open configuration:
sudo raspi-config
Then:
- Interface Options → Serial
- Disable login shell over serial
- Enable serial hardware
Verify:
ls /dev/ttyAMA0
ls /dev/ttyS0
If UART is missing, check /boot/config.txt:
enable_uart=1
3. Disable Bluetooth UART Conflict
On many Raspberry Pi models, Bluetooth occupies the primary UART.
Add to /boot/config.txt:
dtoverlay=disable-bt
Reboot the system after making changes.
Raspberry Pi UART Documentation
“Can’t Communicate with Laser Distance Sensor via UART”?
Most Common Causes and Fixes
❌ Problem 1: Wrong Baud Rate
Many developers assume 9600, but ToF sensors often use:
📌 Fix:
Check the sensor datasheet or test multiple baud rates using minicom.
❌ Problem 2: TX and RX Reversed
This is the #1 physical wiring mistake.
📌 Fix:
Always cross-connect:
- Sensor TX → Pi RX
- Sensor RX → Pi TX
❌ Problem 3: Voltage Level Mismatch
5V UART output into a 3.3V GPIO pin may:
- Cause random data
- Destroy the GPIO
📌 Fix:
Use a bidirectional logic level converter.
❌ Problem 4: Binary Data Interpreted as Text
Laser distance sensors usually transmit binary frames, not readable text.
📌 Fix:
Read raw bytes and parse according to the protocol specification.
❌ Problem 5: UART Disabled or Occupied
Linux console or Bluetooth may still be using the UART port.
📌 Fix:
- Disable serial console
- Disable Bluetooth overlay
- Reboot and retest
How to Read and Parse ToF Laser Sensor Data via UART
Below is a minimal Python example using pySerial:
import serial
ser = serial.Serial(
port='/dev/ttyAMA0',
baudrate=115200,
timeout=1
)
data = ser.read(9)
print(data)
Typical Точечный датчик data frames include:
- Header bytes
- Distance value (high + low byte)
- Signal strength
- Checksum
Always consult the sensor’s protocol documentation for accurate parsing.

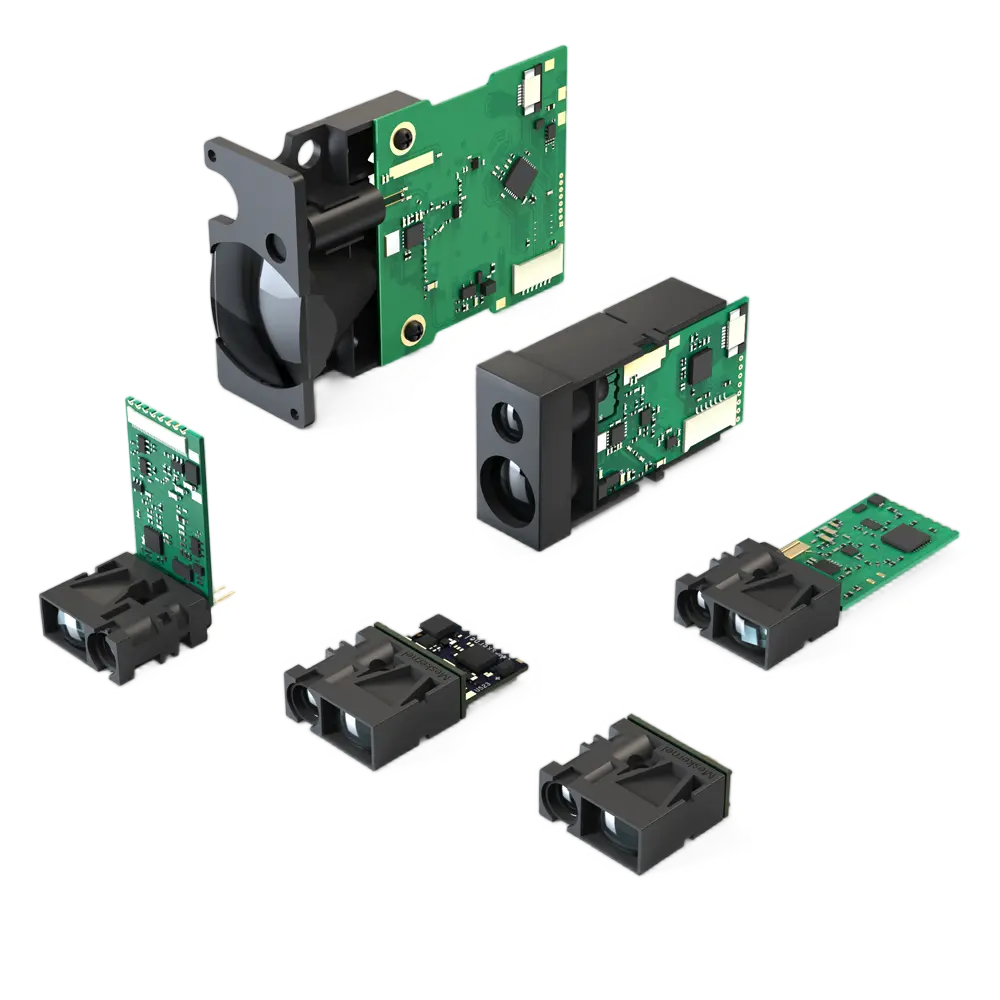

Mini ToF Laser Range Sensor Applications
Miniaturized ToF laser sensors are widely used in:
- Mobile robots and AGVs
- Obstacle avoidance systems
- Промышленная автоматизация
- Smart IoT devices
- Distance-based safety обнаружение
Their small size, high accuracy, and UART simplicity make them ideal for embedded integration.
UART vs I²C ToF Laser Sensors: Which Should You Choose?
Choose UART if:
- You need long cable runs
- Data rate is high
- Environment has electrical noise
Choose I²C if:
- Distance is short
- Multiple sensors share one bus
- Simplicity matters more than speed
For industrial or robotics projects, UART ToF sensors are usually the safer choice.
Final Thoughts on ToF Laser Sensor UART Integration with Raspberry Pi
If your ToF laser sensor is not communicating via UART, the issue is almost always one of the following:
- Incorrect baud rate
- Voltage mismatch
- TX/RX wiring error
- Binary data misinterpretation
- UART resource conflict
Once these are resolved, UART-based ToF laser sensors are extremely reliable and performant.
This guide provides the foundation you need to integrate, debug, and deploy laser distance sensing in real-world Raspberry Pi projects.
